Getting javascript plugins to run in Hybrid environment

Support Installation and Deployment
1

I’m trying to get a sample JS middleware plugin to run on my hybrid environment.
I’ve followed the instructions https://tyk.io/docs/customise-tyk/plugins/javascript-middleware/install-middleware/tyk-hybrid/ but I can’t get it to work.

my tyk. conf is as below:
[…]
“enable_jsvm”: true,
“oauth_redirect_uri_separator”: “;”,

“coprocess_options”: {
“enable_coprocess”: true,
“python_path_prefix”: “/opt/tyk-gateway”
},
“enable_bundle_downloader”: true,
“bundle_base_url”: “http://localhost:8000/”,
“public_key_path”: “/path/to/my/pubkey”,
[…]

my middleware folder contains:
API
–/pre
-----/samplePreProcessMiddleware.js

I consistently get the following message : ERROR jsvm: Failed to run JS middleware: ReferenceError: ‘samplePreProcessMiddleware’ is not defined

If I change the filename, the error comes up with the matching name.
If I change the name of the folder, the gateway doesn’t pick up the plugin, the API respond fine (without plugin)

Any help much appreciated !

2

Your middleware should have JS middleware object with name samplePreProcessMiddleware.

Can you share your middleware?

3

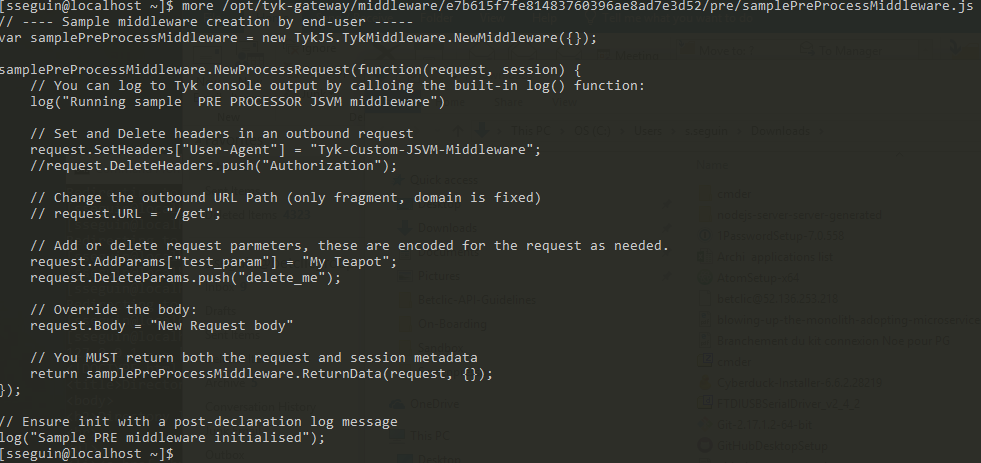

Sure, it’s the sample one provided within the install

image.png981×463 67 KB

4

Pls also share the full logs when gateway loads your API.

Thank you.

5

Ah, one more thing. Pls enable verbose logging by setting TYK_LOGLEVEL=debug variable to hybrid container (you can modify start.sh file to do that).

6

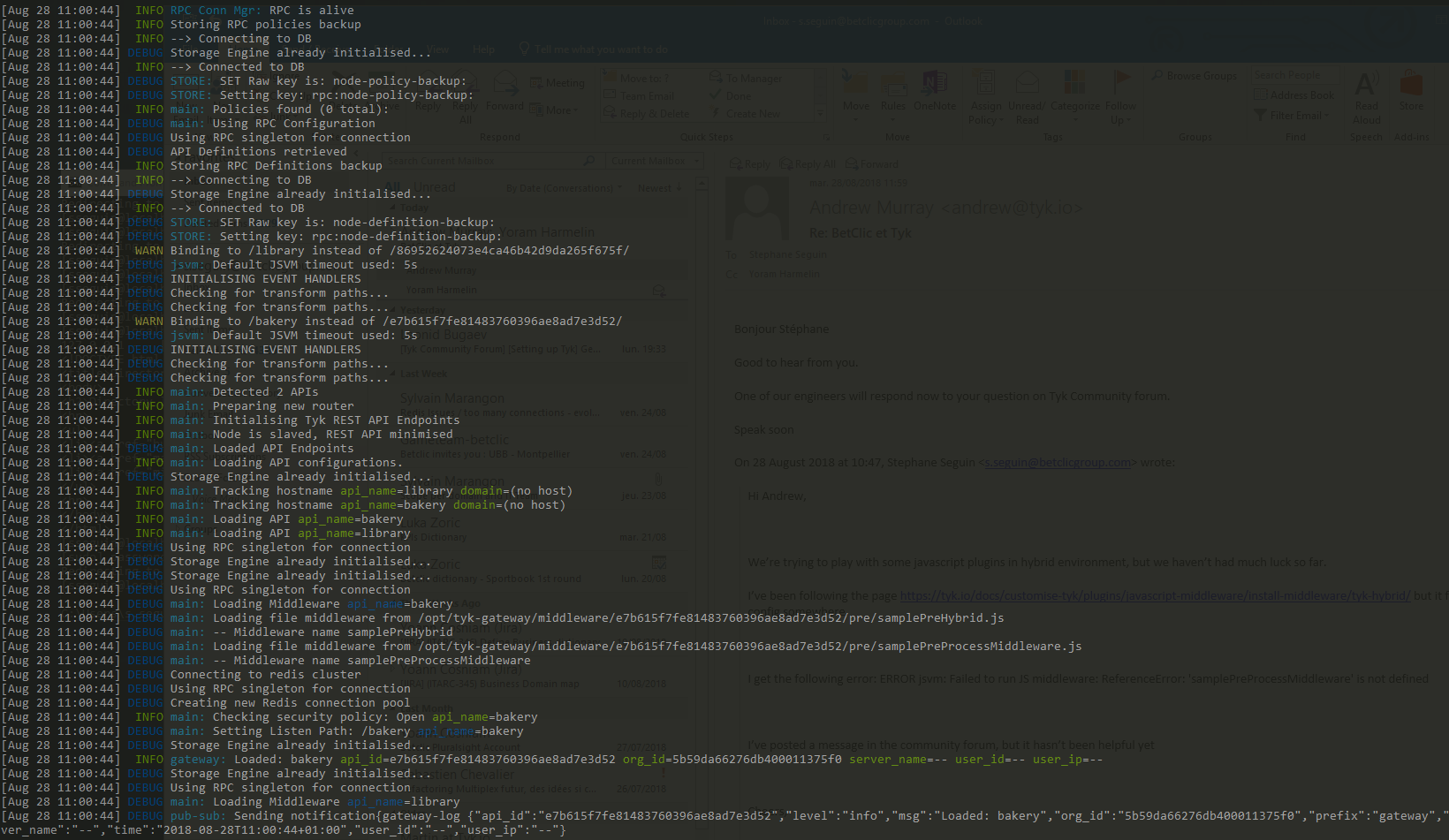

Here they are

image.png1640×951 218 KB

image.png1661×954 238 KB

7

Hi Stephane, can you share your API definition?

8

Hi Matias,

This is the API definition

{
“api_model”: {},
“api_definition”: {
“api_id”: “e7b615f7fe81483760396ae8ad7e3d52”,
“upstream_certificates”: {},
“use_keyless”: true,
“enable_coprocess_auth”: false,
“jwt_disable_issued_at_validation”: false,
“custom_middleware”: {
“pre”: [],
“post”: [],
“post_key_auth”: [],
“auth_check”: {
“name”: “”,
“path”: “”,
“require_session”: false
},
“response”: [],
“driver”: “”,
“id_extractor”: {
“extract_from”: “”,
“extract_with”: “”,
“extractor_config”: {}
}
},
“disable_quota”: false,
“custom_middleware_bundle”: “”,
“cache_options”: {
“cache_timeout”: 0,
“enable_cache”: false,
“cache_all_safe_requests”: false,
“cache_response_codes”: [],
“enable_upstream_cache_control”: false,
“cache_control_ttl_header”: “”
},
“enable_ip_blacklisting”: false,
“tag_headers”: [],
“pinned_public_keys”: {},
“expire_analytics_after”: 0,
“domain”: “”,
“openid_options”: {
“providers”: [],
“segregate_by_client”: false
},
“active”: true,
“config_data”: {},
“notifications”: {
“shared_secret”: “”,
“oauth_on_keychange_url”: “”
},
“auth”: {
“auth_header_name”: “”,
“use_certificate”: false
},
“check_host_against_uptime_tests”: false,
“auth_provider”: {
“name”: “”,
“storage_engine”: “”,
“meta”: {}
},
“blacklisted_ips”: [],
“hmac_allowed_clock_skew”: -1,
“dont_set_quota_on_create”: false,
“uptime_tests”: {
“check_list”: [],
“config”: {
“expire_utime_after”: 0,
“service_discovery”: {
“use_discovery_service”: false,
“query_endpoint”: “”,
“use_nested_query”: false,
“parent_data_path”: “”,
“data_path”: “”,
“cache_timeout”: 60
},
“recheck_wait”: 0
}
},
“enable_jwt”: false,
“do_not_track”: false,
“name”: “bakery”,
“jwt_disable_expires_at_validation”: false,
“slug”: “bakery”,
“oauth_meta”: {
“allowed_access_types”: [],
“allowed_authorize_types”: [],
“auth_login_redirect”: “”
},
“CORS”: {
“enable”: false,
“max_age”: 0,
“allow_credentials”: false,
“exposed_headers”: [],
“allowed_headers”: [],
“options_passthrough”: false,
“debug”: false,
“allowed_origins”: [],
“allowed_methods”: []
},
“event_handlers”: {
“events”: {}
},
“proxy”: {
“target_url”: “http://betclicmockup.azurewebsites.net/”,
“endpoint_returns_list”: false,
“cache_timeout”: 0,
“parent_data_path”: “”,
“service_discovery”: {
“endpoint_returns_list”: false,
“cache_timeout”: 0,
“parent_data_path”: “”,
“query_endpoint”: “”,
“use_discovery_service”: false,
“target_path”: “”,
“use_target_list”: false,
“use_nested_query”: false,
“data_path”: “”,
“port_data_path”: “”
},
“check_host_against_uptime_tests”: false,
“transport”: {
“ssl_ciphers”: [],
“ssl_min_version”: 0,
“proxy_url”: “”
},
“target_list”: [],
“query_endpoint”: “”,
“use_discovery_service”: false,
“_sd_show_port_path”: false,
“preserve_host_header”: false,
“use_target_list”: false,
“strip_listen_path”: true,
“use_nested_query”: false,
“data_path”: “”,
“port_data_path”: “”,
“enable_load_balancing”: false,
“listen_path”: “/e7b615f7fe81483760396ae8ad7e3d52/”
},
“client_certificates”: [],
“use_basic_auth”: false,
“version_data”: {
“not_versioned”: true,
“default_version”: “”,
“versions”: {
“Default”: {
“name”: “Default”,
“expires”: “”,
“paths”: {
“ignored”: [],
“white_list”: [],
“black_list”: []
},
“use_extended_paths”: true,
“global_headers”: {
“x-functions-key”: “nRmhniVGpWy1FTZ7d5zswj6zoNHVs8danosKu4raH0WpErllH1YfFQ==”
},
“global_headers_remove”: [],
“global_size_limit”: 0,
“override_target”: “”,
“extended_paths”: {
“white_list”: [
{
“path”: “/api/pastries/{pastry}”,
“method_actions”: {
“GET”: {
“action”: “no_action”,
“code”: 200,
“headers”: {}
}
}
}
],
“url_rewrites”: [
{
“path”: “/api/pastries/{pastry}”,
“method”: “GET”,
“match_pattern”: “api/pastries/(.*)”,
“rewrite_to”: “api/books/$1”,
“triggers”: [],
“MatchRegexp”: null
}
]
}
}
}
},
“use_standard_auth”: false,
“session_lifetime”: 0,
“disable_rate_limit”: false,
“definition”: {
“location”: “header”,
“key”: “x-api-version”,
“strip_path”: false
},
“use_oauth2”: false,
“allowed_ips”: [],
“org_id”: “5b59da66276db400011375f0”,
“enable_ip_whitelisting”: false,
“global_rate_limit”: {
“rate”: 0,
“per”: 0
},
“enable_context_vars”: false,
“tags”: [],
“basic_auth”: {
“disable_caching”: false,
“cache_ttl”: 0
},
“session_provider”: {
“name”: “”,
“storage_engine”: “”,
“meta”: {}
},
“strip_auth_data”: false,
“id”: “5b7ae093bebdbb0001d65325”,
“enable_signature_checking”: false,
“use_openid”: false,
“jwt_skip_kid”: false,
“enable_batch_request_support”: false,
“jwt_disable_not_before_validation”: false,
“response_processors”: [],
“use_mutual_tls_auth”: false
},
“hook_references”: [],
“is_site”: false,
“sort_by”: 0
}

9

Looks good however your custom_middleware block looks empty. In any case try using a block like this (make sure the driver flag is present):

    "custom_middleware": {
        "driver": "otto",
        "pre": [
            {
                "name": "sampleMiddleware",
                "path": "middleware/sampleMiddleware.js"
            }
        ]
    }
